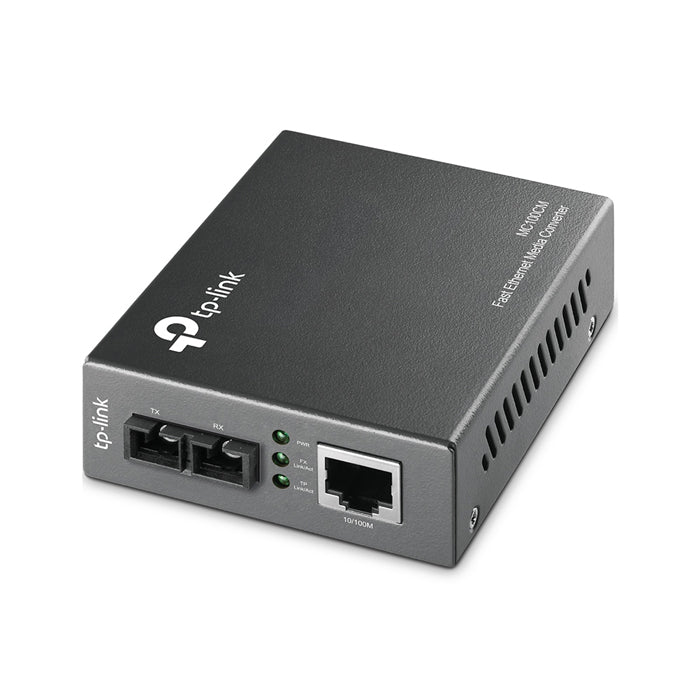

This media converter is designed to convert 100BASE-FX fibre to 100Base-TX copper media or vice versa. The TP-Link Media Converter RJ45-SC 10/100 Multimode, is able to be used as a stand alone device with no chassis required or it can be used with TP LINK’s 19†system chassis.
 > Complies with 802.3u 10/100Base-FX Standards
 > Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
 > Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
 > Extends fibre distance up to 2km
Specifications
Ports: 100M SC port, 1 100M RJ45 port (Auto MDI/MDIX)
Wave Length: 1310nm
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX: Multi-mode Fibre
LED Indicators: PWR, FDX/Col, Link/Act, SPD
Dimensions: 94.5x73x27mm
Power Supply: External Power Supply
Power Supply: FCC, CE, RoHS
Operating Temperature: 0 degrees Celsius~40 degrees Celsius
Storage Temperature: -40 degrees Celsius ~ 70 degrees Celsius
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
