LMR195 Coax 100m

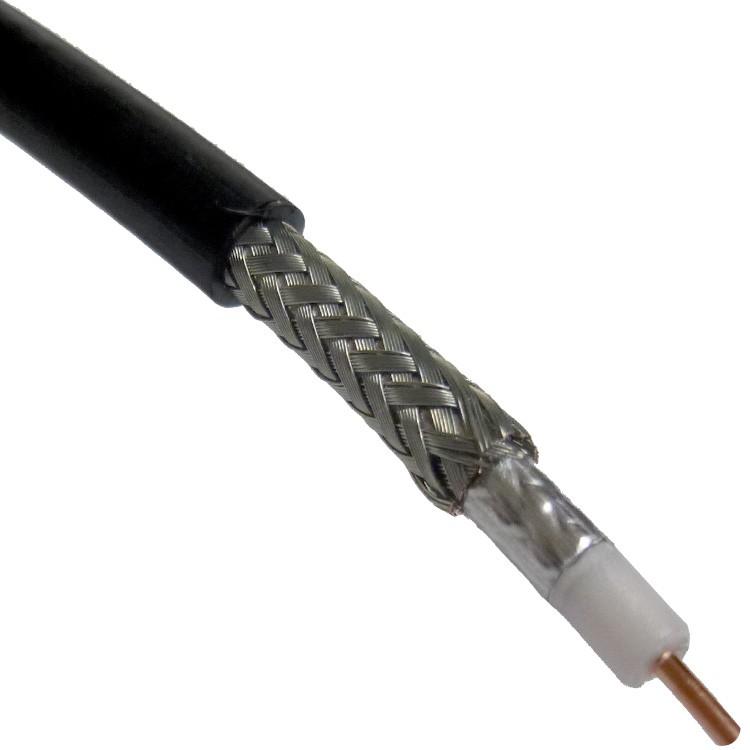

Times Microwave LMR195-FR Fire Retardant Cable 100m Cable Reel
Â
Key Features
Â
-
Direct burial rated
-
High grade low loss antenna cable
-
Buy in bulk and save.
Â
Usage
Â
-
The Times Microwave LMR-195-FR coaxial cable (black) features a non-halogen, low smoke, fire-retardant cable designed for in building applications
-
The LMR-195 cable is MSHA approved for mining operations
-
This low loss 50 Ohm coax cable features a foil shield and 90 percent braided shield
-
The LMR-195 transmission line can be used in almost any application where handling characteristics, improved shield and low loss is required
-
The fire-retardant low loss coax cable has a comparable performance to RG142 cable and uses RG58 connectors
-
The Times Microwave fire-retardant LMR195 low loss coax cable is available in bulk and is priced per foot.
Â
Specifications / Frequency
Â
Electrical Specifications
Â
-
Resistance: 50Ω
-
Capacitance: 83.3pF/m
-
Signal Loss: 0.36dB/m @ 850MHz, 0.53dB/m @ 1800MHz
-
Frequency Range: DC-6GHz
-
Velocity of Propagation: 76%
-
Nominal Delay: 4.17ns/m
-
Voltage Withstand: 1000Volts DC
-
Peak Power: 2.5kW
Â
Mechanical Specifications
Â
-
Weight: 0.03kg/m
-
Operating Temperature: -40° ~ +85°C
-
Minimum Bend Radius: 12.7mm
-
Conductor Material: Solid BC (0.94mm)
-
Insulating Material: Foam PE (2.79mm)
-
Outer Shield Material:
-
(1) Bonded Aluminium Polyester Tape 100% Coverage (2.95mm)
-
(2) Tinned Copper Wire 88% Coverage (3.53mm)
-
-
Outer Jacket Material: PVC Weather & UV Resistant (4.95mm ±0.15mm)
