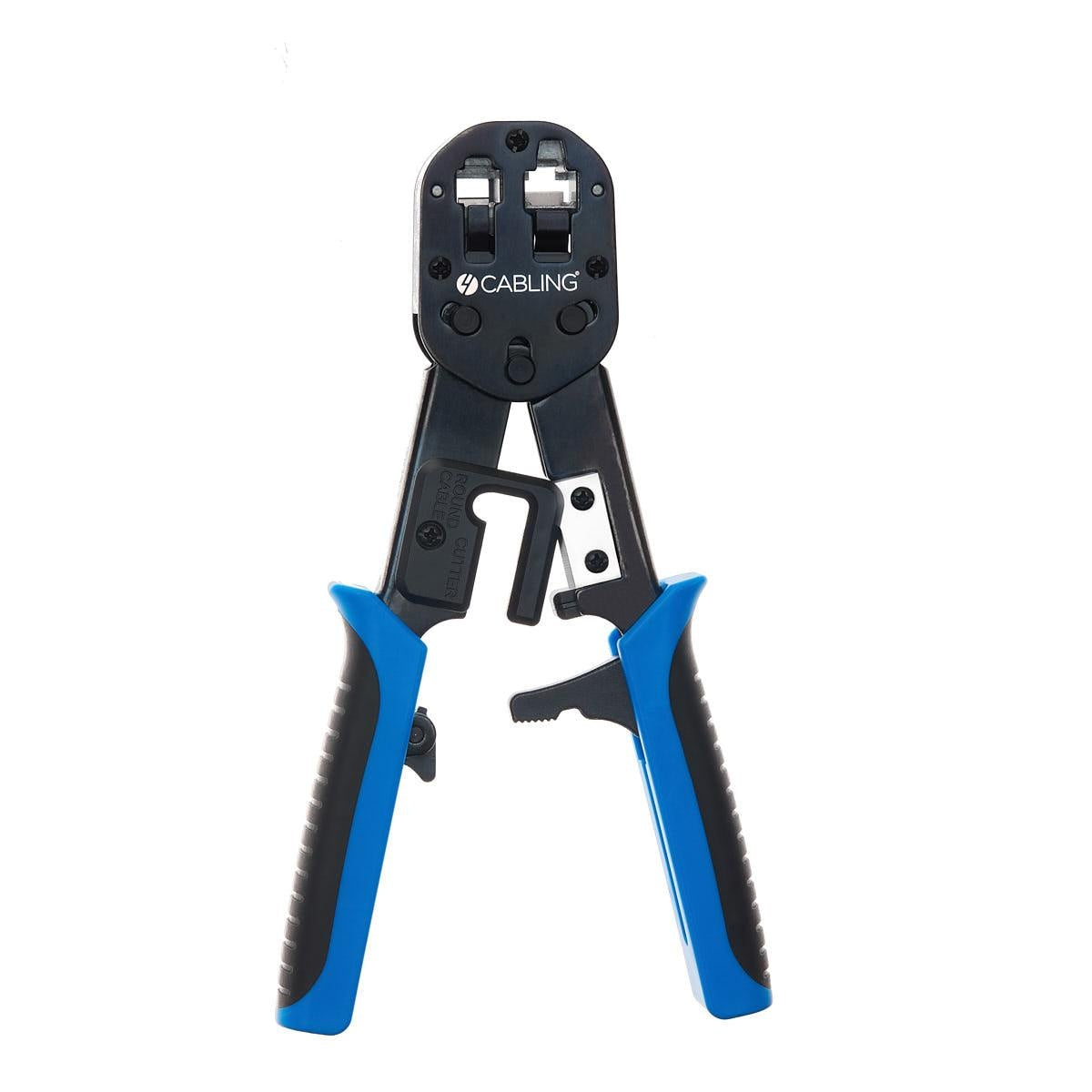

Insta Crimp Tool
Insta Crimp Tool
Suitable for use with Insta Crimp CAT5e and CAT 6 RJ45 plugs only.
Insta Crimp Plugs. Simplifies twisted pairs termination by allowing the wires to be inserted through the connector and out the front. This feature allows the technician to verify the proper wiring order.
Electrical performance of the termination is optimised by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimised!
- Crimps and trims any excess wire in a single movement. This saves time and ensures wires are all flush with the end of the connector
- Ratchet mechanism
- Consistent termination
- Crimps Insta Crimpâ€™s
- Built-in stripper for round cable
- Built-in cutter
Our Insta Crimp tool features a built-in ratchet to ensure that the crimp action is consistent. The parallel crimping action guarantees a quality crimp and the precision hardened pins ensure reliable termination each and every time.
- Strip the outer cable sheath approx. 30mm
- Cut off any separator or nylon string flush with cable sheath being careful not to nick conductors
- Fan out 8 wires and arrange in colour code 568A. The 8 wires should be flat and neatly lined up next to one another.
- Insert through crimp tool with excess wire protruding out the front
- Insert plug into the correct position on the crimping tool
- Squeeze the tool firmly, this will terminate the wires and cut off any excess cable length
3-year limited warranty
