GIGABYTE

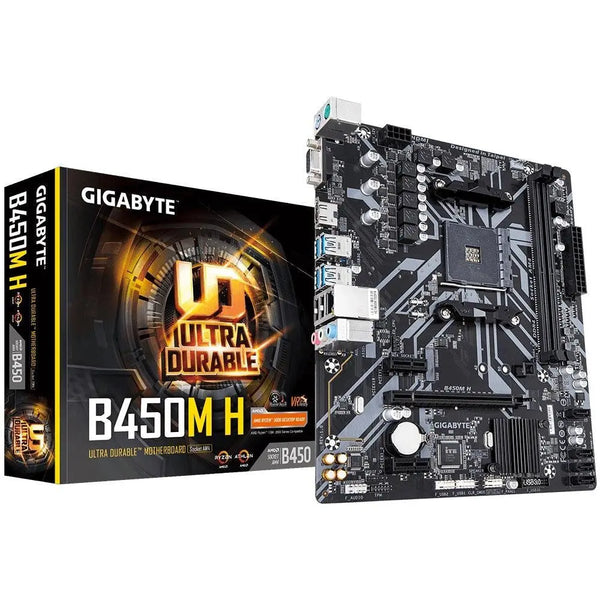

GIGABYTE B450M H AMD Ryzen AM4 mATX Motherboard 2xDDR4 2xPCIe HDMI 1xM,2 4xSATA RAID GbE LAN 2xUSB3.1 6x(LS)
Gigabyte AMD B450 Ultra Durable Motherboard with GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor Design Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs HDMI, D-sub Ports for Multiple Display Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management RGB Fusion supports RGB LED Strips in 7-Colors High Quality Audio Capacitors and Audio Noise Guard Design Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers APP Center Including EasyTune™ and Cloud Station™ Utilities CPU AMD Socket AM4 Chipset AMD B450 Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 16 GB Expansion Slots 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Micro ATX Form Factor; 24.4cm x 20.5cm
