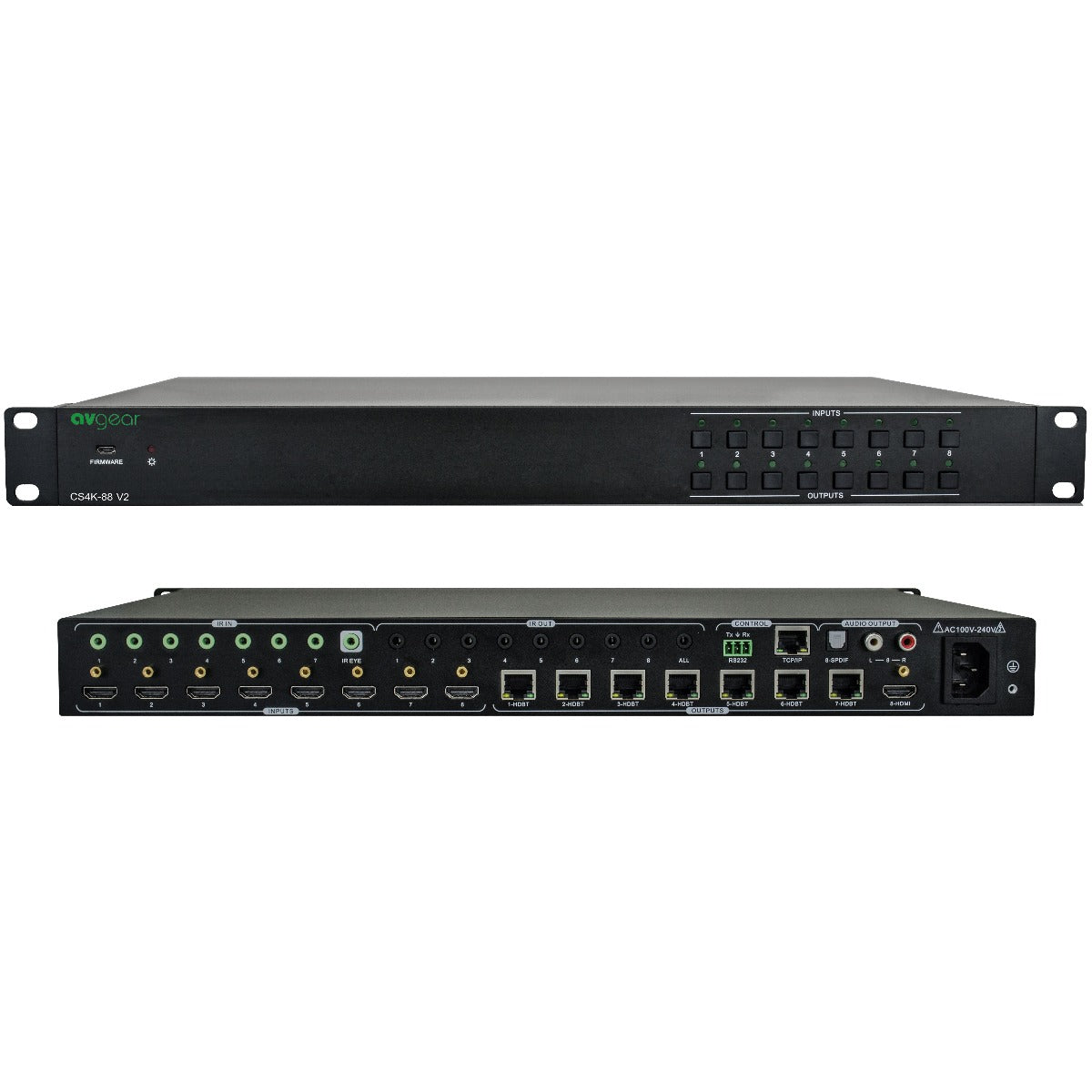

AVGear AVG-CS4K-88-V2 HDBT/HDMI 8 x 8 Matrix Switch
AVGear | AVG-CS4K-88-V2 | HDBT/HDMI 8 x 8 Matrix Switch
The AVG- CS4K-88 V2 is a professional 4K HDBaseT Distribution Matrix Kit, which consists of a 4K HDBaseT Matrix Switcher, 7 HDBaseT Receivers and accessories. This system is capable of being fully integrated into a whole-home control system solution.
- 7 HDBaseT outputs with distances up to 70m at 1080p and 40m at 4Kx2K on a single CAT6. 1 HDMI output.
- Supports HDMI 1.4 & HDCP 2.2, and is compatible with lower standards.
- Transmits 4Kx2K @60Hz 4:2:0 signal for 8m via HDMI port, 40m via HDBT ports.
- Supports manual HDCP management and auto-detection.
- The HDBaseT Receivers are powered by the matrix switcher via PoC technology.
- LED indicators show real-time switching status.
- Control via front panel, IR, RS232 and TCP/IP.
- Supports bi-directional IR(5V) & RS232 control.
- CEC control to far end displays via RS232 commands.
- Built-in GUI for TCP/IP control.
- Powerful EDID management.
- Supports firmware upgrade through the Micro USB port.
- Easy installation with rack-mounting design.
1-year limited warranty.
