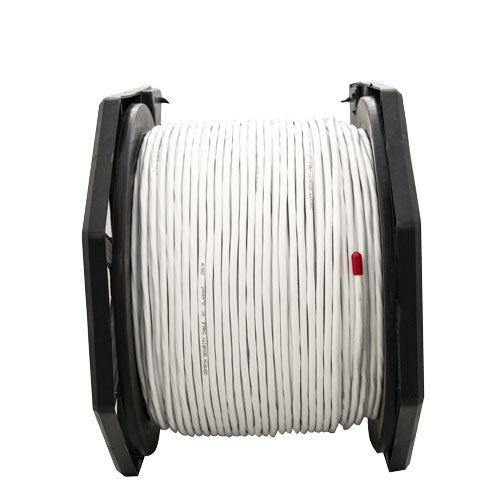

6 Core 14/020 Shielded, 200m Security Cable - White - LSZH

6 Core Security & Alarm Cable. Shielded. PVC insulated/sheathed, RoHS Compliant. Extra-low voltage. Oxygen-free Copper. suitable for usage in Security & Intruder alarm systems. Use in low voltage/ low current applications such as intercommunications. This cable is for low voltage use only and is not suitable for mains connection.

• Material: Plain Annealed Oxygen Free Copper
• Stranded: 14 x 0.2mm
• Nom. O.D. 0.86mm
• Cross-section area: 0.44mm2
• Max. DC resistance: 43 Ohm / Km

• Material: Coloured PVC, RoHS compliant
• Low Smoke Zero Halogen (LSZH) reduces the amount of corrosive and toxic gases emitted during combustion
• Nom. O.D.: 1.50mm
• Nom. wall thickness: 0.32mm
• Colour codes; Black / White / Red / Blue/ Green/ Yellow
• 6 cores stranded

• Material: Tinned Copper Wire, Stranded
• Stranding: 7x0.18mm

• Material: AL/pet tapes, AL side inwards, against the drain wire, helix wrapped

• Material: White PVC, RoHS compliant
• Low Smoke Zero Halogen (LSZH) reduces the amount of corrosive and toxic gases emitted during combustion
• Nom. External O.D.: 5.80±0.30mm
• Nom. Wall Thickness: 0.60±0.05mm
• Cable Finish: Typically ropy
• Voltage Rating: Extra-low voltage
• Operating Temp. Range: -20C to +70C

1-year limited warranty
