5U Vertical Wall Mount Server Rack H740mm x D250mm

Regular price $555.45 now $408.17 Unit price  per

Shipping calculated at checkout.

5U Vertical Wall Mount Server Rack H740mm x D250mm

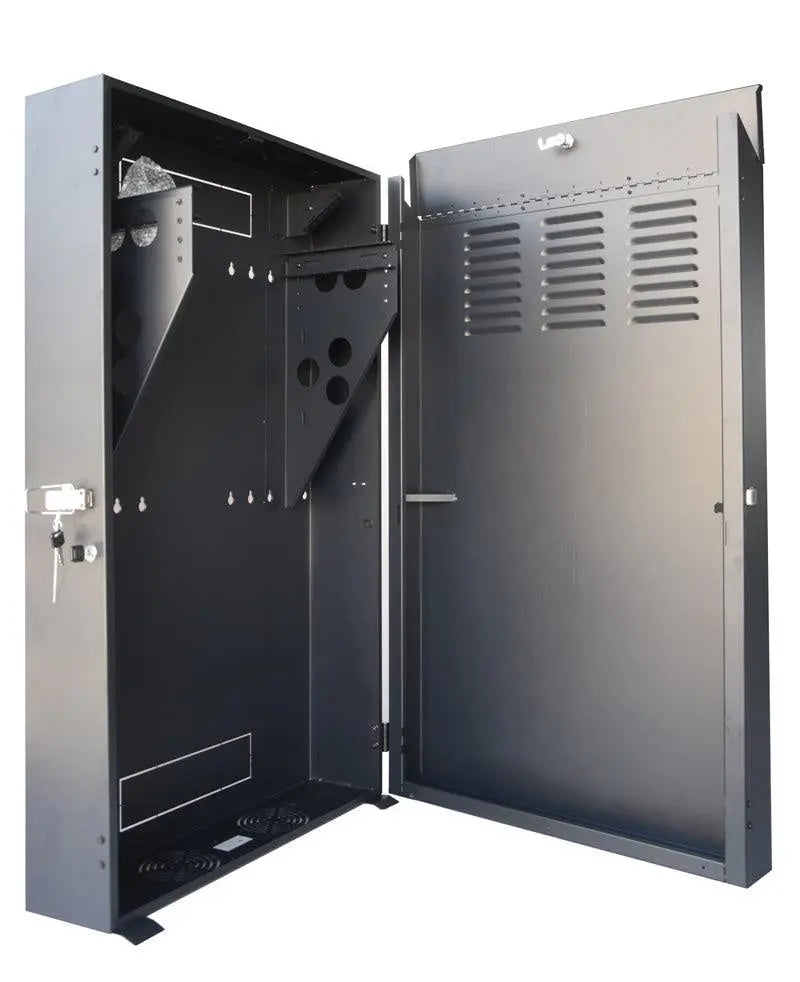

’s 5U Vertical Wall Mount Cabinet is designed to save you space. Perfect for small network equipment and limited space networking environments, the low-profile of the cabinet allows your equipment to be mounted vertically in anywhere from comms rooms to retail stores, classrooms and offices. Anywhere that requires a smaller footprint and security. The cabinet sits 250mm from the wall when mounted and will house 19” networking equipment with a depth up to 580mm, including 1U servers, UPS systems, battery packs, network switches and patch panels. In addition to 5U of rack space in the primary mounting area, there is also an adjustable 2U mounting bracket at the top of the cabinet for patch panels.



  • Supplied fully assembled
  • 580mm max. device depth
  • Equipment mounts facing upwards in the cabinet
  • Constructed of cold-rolled steel
  • Cable entry glands at the top and bottom of the cabinet
  • Static load capacity 60kg
  • Reversible vented front door
  • Patch panel mounting bracket
  • Flip down top door section for easy access to a patch panel
  • 2-way Fan cut out on the base (Fans NOT included)



  • Houses 19” rack equipment in 5U of space
  • Rails adjust - unscrew them, slide them to the desired depth, and screw them back in
  • Threaded mounting holes support M6 mounting
  • Rack spaces marked for easy reference
  • Cable glands with removable covers allow cable routing through top and bottom
  • Push-out rectangular glands at back top and bottom
  • Adjustable 2U mounting bracket for patch panels up to 63.5mm deep




  • 12 Sets of M6 Screws
  • 4 keys (2 x pairs)
