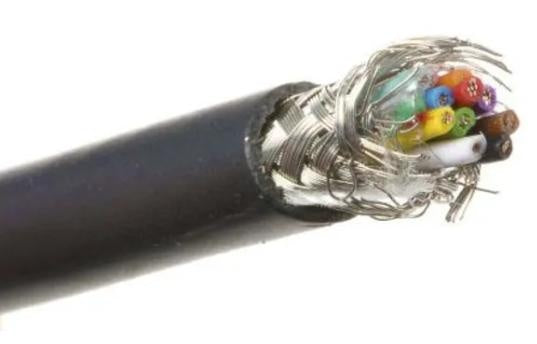

12 Core Screened Data Cable 100m
Deals499

12 Core Screened Data Cable 100m

Regular price $552.72 Sale price $468.17
/
Shipping calculated at checkout.

Only 93 items in stock!
Specifications
Attribute Value
Number of Cores 12
Cross Sectional Area 0.22 mm²
Screened/Unscreened Screened
Length 100m
Sheath Colour Black
American Wire Gauge 24 AWG
Outer Diameter 6.9mm
Current Rating 1 A
Screen Type Tinned Copper Braid
Maximum Operating Temperature +80°C
Core Strands 7/0.2 mm
Sheath Material Polyvinyl Chloride PVC
Voltage Rating 300 V
Fire Behaviour Flame Retardant
Insulation Material PVC
Minimum Operating Temperature -20°C
Conductor Resistance 86.2 Ω/km
Conductor Material Copper
Drain Wire No
